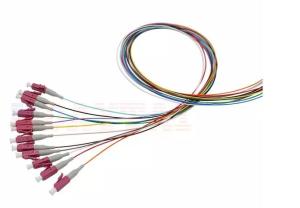

12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail

Name: 12 Core LC 09mm MM OM4 Fiber Optic Cable Pigtail
Brand: CY COM
Price: 1 USD

Brand Name : CY COM

Model Number : LC SC FC

Certification : ISO9001:2015 , ISO14001:2015, RoHS,SGS

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

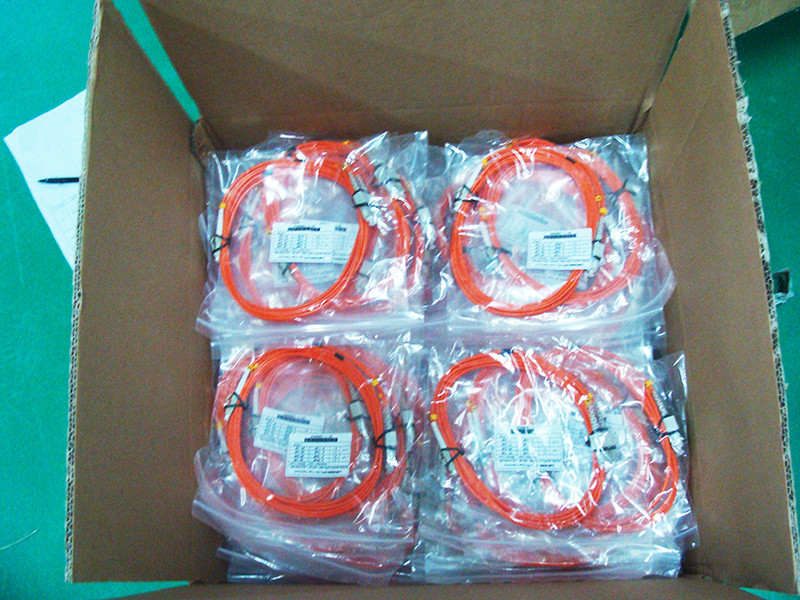

Packaging Details : PE bag or plastic box and Carton box

Connector : SC,FC,LC

Fiber Count : 4/6/8/12 Cores

Cable diameter : 0.9/2.0/3.0mm

fiber type : OM4

Cable color : Magenta

Insertion loss : IL<0.2db

Contact Now

12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail

Manufacturer 12 core LC 0.9mm OM4 MM Fiber Optic cable pigtail Magenta connector

Description:

12 Standard Color Fiber optic Pigtail,LC/PC Connector,MM (Multi-Mode),OM4 , Diameter: 0.9mm/2.0mm/3.0mm Fiber Optic Cable,Sheath Material: PVC or LSZH is optional, Length: 1.5m, 2m, 3m...is optional.

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

1. Fiber Optic CATV
2. Fiber to home(FTTH)
3. Passive Optical Networks(PON)
4. Local Areal Networks(LAN)
5. Fiber communication systems

Parameters

Parameter	LC,SC,ST,FC
	SM		MM
	UPC	APC	UPC
Operating Wavelength(nm)	1310/1550		850/1300
Insertion Loss(dB)	≤0.20	≤0.20	≤0.20
Return Loss(dB)	≥55	≥65	≥35
Repeatability Loss(dB)	≤0.1
Interchangeability Loss(dB)	≤0.20
Repeat Piug-pull Times	≥1000
Tensil Strength(N)	≥100
Durability Loss(dB)	≤0.20
Operating Temperature(℃)	-40℃~ +75℃
Storage Temperature(℃)	-40℃~85℃

12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail

Product Tags:

OM4 Fiber Optic cable pigtail

LC 0.9mm MM pigtail

12 Core OM4 pigtail

China 12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail wholesale

12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail Images
