G657A SC APC Fiber Optic Pigtail

Name: G657A SC APC Fiber Optic Pigtail
Brand: CY COM
Price: 1 USD

China G657A SC APC Fiber Optic Pigtail wholesale

Brand Name : CY COM

Model Number : SC/APC

Certification : RoHS,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

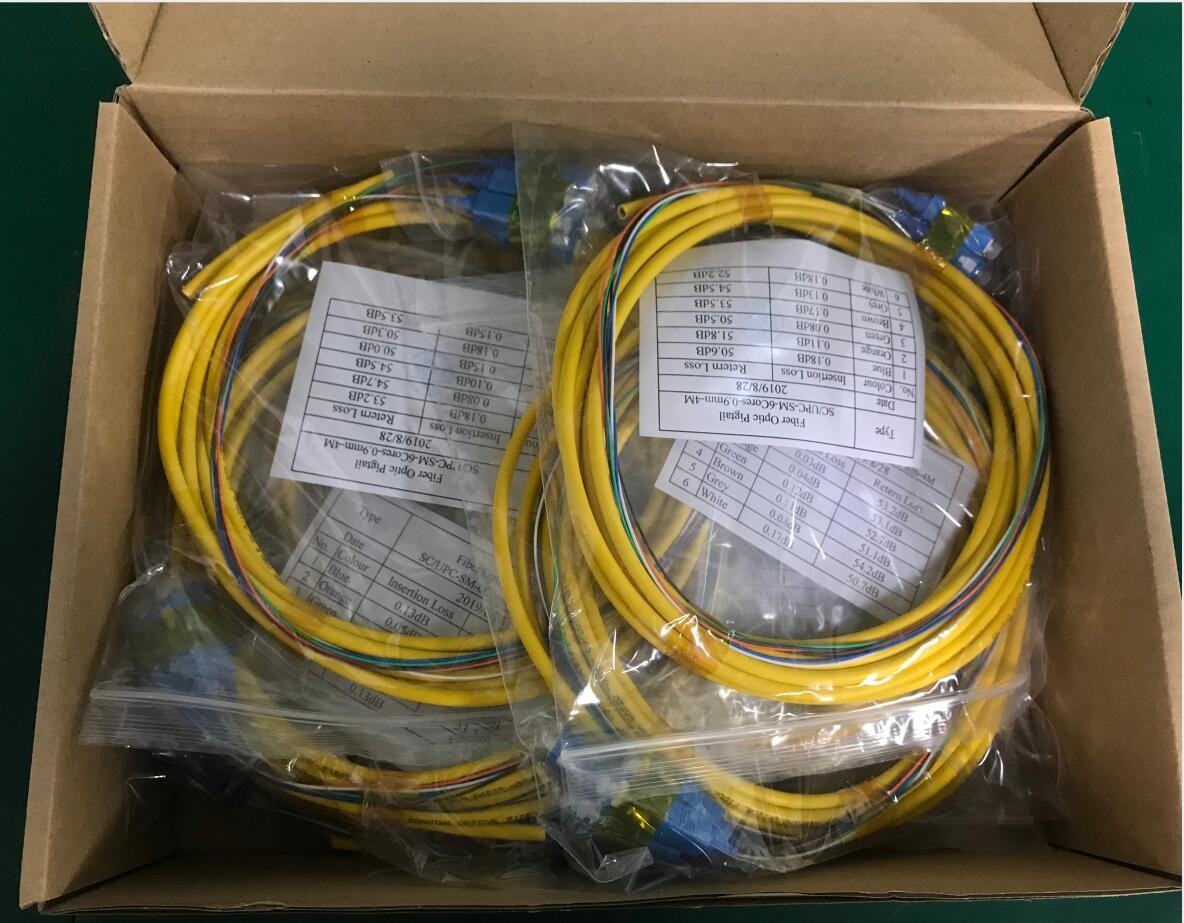

Packaging Details : PE bag or plastic box and Carton box

Length : 1m or customized

Cable color : Colors

Connector : SC,FC,LC

Ferrule End-face : APC

Cable diameter : 0.9mm/2.0mm/3.0mm

Return loss : >50dB

Fiber Count : 4/6/8/12 Fibers

Contact Now

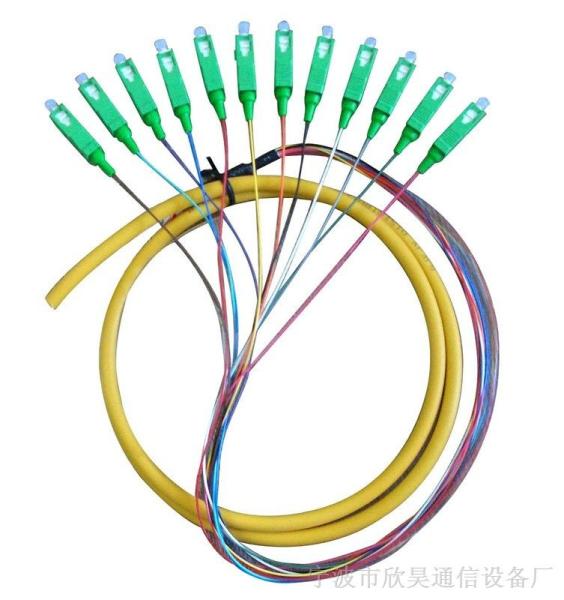

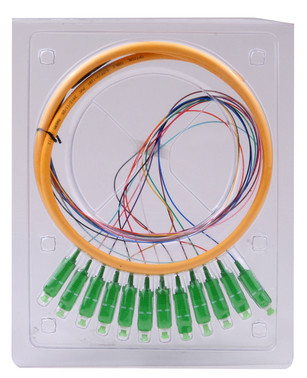

4/6/8/12 core multifiber bundle fiber optic pigtails SC/APC G657A

Description:

Fiber Optic Breakout pigtail is installed on with one side connectors, used to implement the incoming fiber optic cable with outgoing fiber optic patchcord.Our company operates largescale production and supplies reliable and high-quality products. Fiber Optic Breakout Patchcord is also available

Features :

Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss

Good in repeatability and exchangeability

High dense connection, easy for operation

Application:

Telecommunication

Computer networks

CATV networks Active device termination

Instrumentation

Parameters

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm

G657A SC APC Fiber Optic Pigtail

Product Tags:

G657A Fiber Optic Pigtail

2.0mm optical fiber pigtail

3.0mm optical fiber pigtail

G657A SC APC Fiber Optic Pigtail Images
