40GBase AOC Active Optical Cable

Name: 40GBase AOC Active Optical Cable
Brand: CY COM
Price: 1 USD

China 40GBase AOC Active Optical Cable wholesale

Brand Name : CY COM

Model Number : 40G QSFP+ OM2 Cable

Certification : ISO9001:2015,ISO14001:2015,Rosh

Place of Origin : Shenzhen China

MOQ : 20pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50K/Month

Delivery Time : 5-8 work days

Packaging Details : Plastic box and bag

Data transfer rate : 40Gbps

Material : Stainless Steel

Fiber Type : OM2

Wavelength : 850nm

Temp : 0~70

Contact Now

40GBase AOC QSFP+ Direct-attach Active Optical Cable, 10-meter

40G QSFP+ OM2 Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. NEME's QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 850nm VCSEL transmitter, PIN photo-detector receiver
* Up to 300m on OM3 MMF
* Operating case temperature: 0 to 70°C
* All-metal housing for superior EMI performance
* RoHS compliant (lead free)

Applications

* InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
* High Performance and High Productivity computer interconnects
* Data Aggregation, Backplane and Proprietary Density Applications
* PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
* Datacom and Telecom switch and router backplane connections

Part Name	Product Description
SFP-AOC-1m	10GBASE SFP+ Active Optical Cable AOC Cable 1m
SFP-AOC-2m	10GBASE SFP+ Active Optical Cable AOC Cable 2m
SFP-AOC-3m	10GBASE SFP+ Active Optical Cable AOC Cable 3m
SFP-AOC-XXm	10GBASE SFP+ Active Optical Cable AOC Cable XXm
QSFP-AOC-1m	40GBASE QSFP+ Active Optical Cable AOC Cable 1m
QSFP-AOC-2m	40GBASE QSFP+ Active Optical Cable AOC Cable 2m
QSFP-AOC-3m	40GBASE QSFP+ Active Optical Cable AOC Cable 3m
QSFP-AOC-XXm	40GBASE QSFP+ Active Optical Cable AOC Cable XXm
QSFP-4XSFP-AOC-1m	40GBASE QSFP+ 4X10G SFP+ Active Optical Cable AOC Cable 1m
QSFP-4XSFP-AOC-2m	40GBASE QSFP+ 4X10G SFP+ Active Optical Cable AOC Cable 2m
QSFP-4XSFP-AOC-3m	40GBASE QSFP+ 4X10G SFP+ Active Optical Cable AOC Cable 3m
QSFP-4XSFP-AOC-XXm	40GBASE QSFP+ 4X10G SFP+ Active Optical Cable AOC Cable XXm

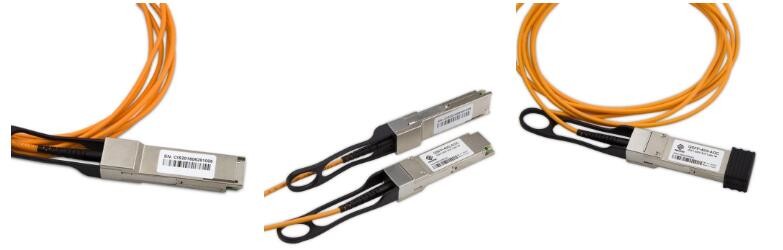

Detailed Images

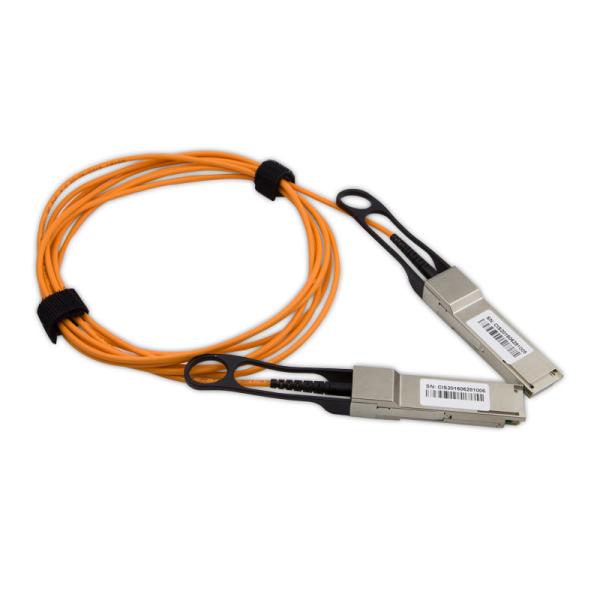

40GBase AOC Active Optical Cable
