2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame

Name: 2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame
Brand: CY COM
Price: 1 USD

China 2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame wholesale

Brand Name : CY COM

Model Number : CY-ODF-24

Certification : ISO9001,ROHS,TLC,

Place of Origin : China

MOQ : 20PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 20K/Month

Delivery Time : 5-10 days

Packaging Details : Wooden Frame

Product name : Fiber Optic Rack Mount ODF

Type : Racks & Enclosure

Fiber Capacity : 12, 24, 48, 96 or 144 ports

materials : Cold rolled carbon sheet steel

Storage Temperature : -45°C~+60°C

size : 482*300*340 mm

Contact Now

2U 24 Ports Rack Mount Fiber Optical FTTX ODF

Fiber Optic 19 inch 2U 24 ports Rack Mount ODF Fiber Optical Patch Panel for FTTX

An optical distribution frame (ODF) is a passive device which terminates cables, allowing arbitrary interconnections to be made.

1. DESCRIPTION

The 3U closed frame Optical Distribution Frame is a modulated design with drawable trays inside and constructed from cold-rolled steel. It is available unloaded or pre-installed with your choice of fibre optic adapters and pigtails. It is ideal for indoor fibre optic cables connection storage, distribution and management. It features an interchangeable adapter plate for ease of adapter swapping.

2. Dimensions
Length: 482m x Width: 300mm x Height: 340mm

3. FEATURES
» Latch door
» Constructed from cold rolled steel
» Can be rack mounted and wall mounted
» Can be used in 19’’, 23’’ standard distribution frames
» Suitable for ribbon and single fibre
» Interchangeable adapter plate
» 24C, 36C, 48C, 72C, 96C optional, with or without fibre optic
pigtails and adapters

4. ODF DATASHEET

Environmental temperature:	-25 - 55°C
Relative humidity:	<85%(when the temperature is below 30°C)
Atmosphere pressure:	70~106Kpa
Insulating resistance:	>2×104 MΩ/500VDC
Voltage-resistance strength:	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

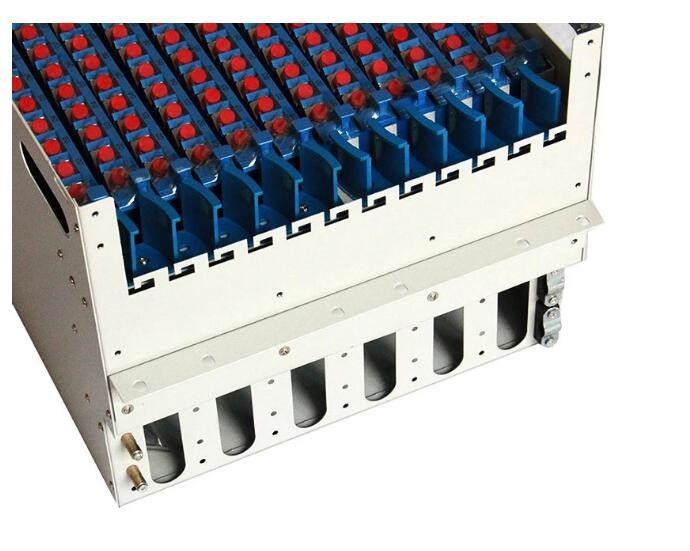

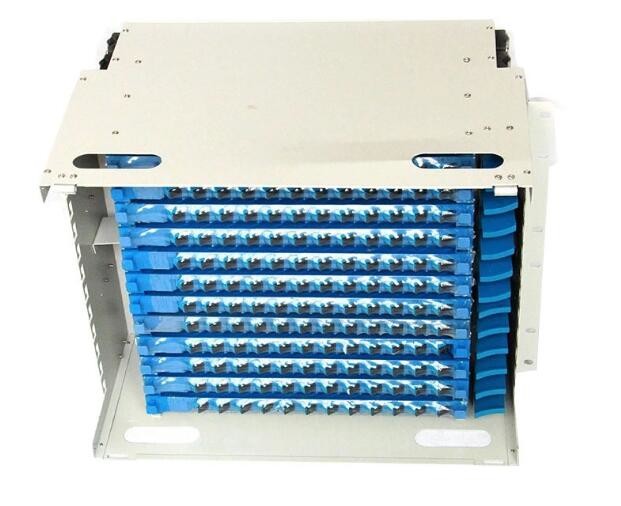

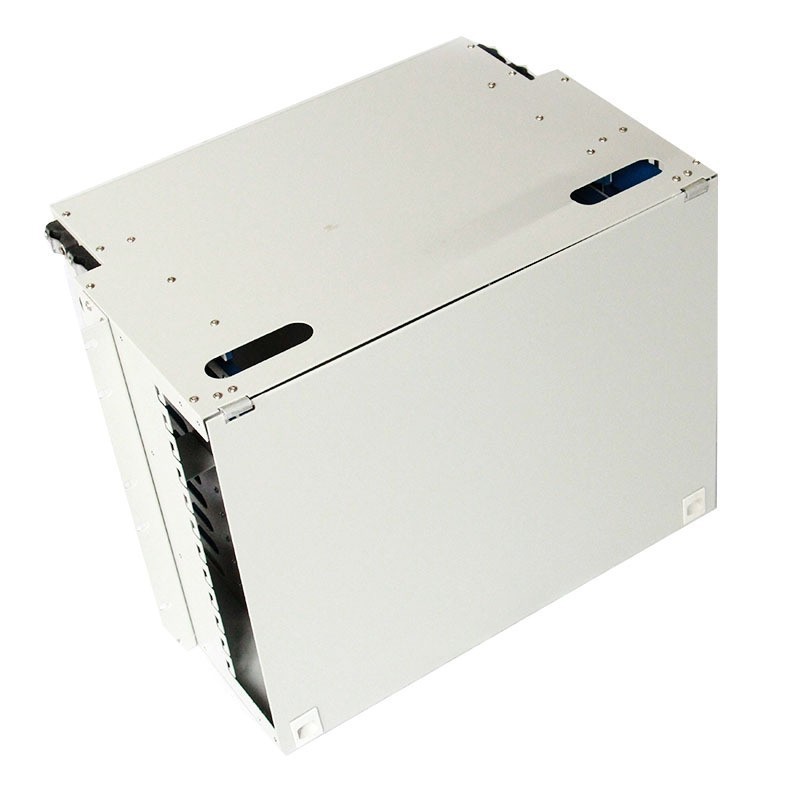

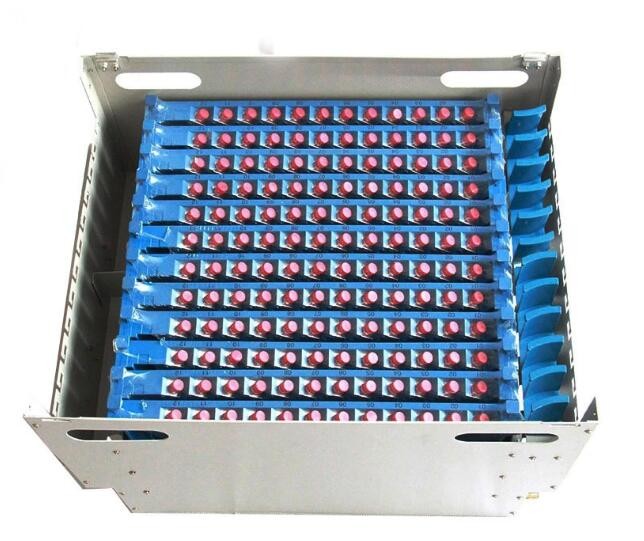

5. ODF FRAME PICTURES

2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame
