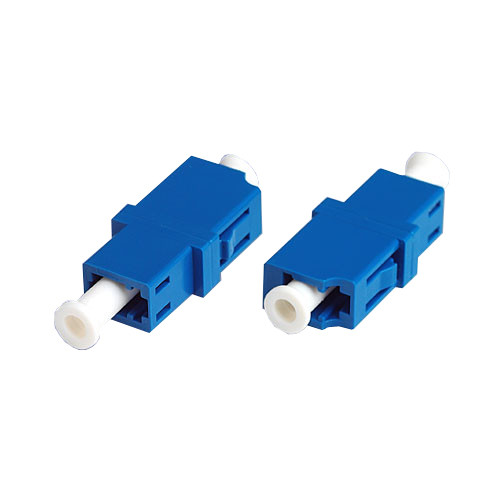

Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter

Name: Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter
Brand: CY COM
Price: 0.12 USD

China Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter wholesale

Brand Name : CY COM

Model Number : LC/UPC-SX

Certification : ISO9001:2015 ,ISO14001:2015,ROSH,SGS

Place of Origin : Shenzhen China

MOQ : 100pcs

Price : USD 0.12-0.24 / PCS

Payment Terms : T/T, Western Union

Supply Ability : 5 MIllion PCS / Month

Delivery Time : 3-7 days

Packaging Details : Plastic Box

Item : LC / UPC Adapter

Color : Blue

Structure : Flangeless

Test : 100%

Materials : FBT+PC

Ferrule material : Ceramic

Cap color : White

Type : Simplex

Contact Now

Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter

LC / UPC Simplex coupler,Plastic Fiber optical adapter Single mode Flangeless Blue color

Description:

LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

Simplex / Duplex
High reliability & stability
Ceramic or Bronze Sleeve
Low insertion loss, high return loss
High precision of mechanical dimensions

Application:

Local Area Network

CATV System

Telecommuniction Networks

Active device termination

Spare parts:

No.	Item	Material	Whether or not RoHS	Flame retardant grade
1	Sleeve	ceramics	Y	Flame retardant
2	inner core	PC	Y	V-0
4	shell	PC	Y	V-0
5	Dust cap	PP	Y	Dissatisfaction
6	Metal bracket	SUS304	Y	Flame retardant

Specification:

Item	Parameter
Insertion loss	≤0.3dB
Durability	≤0.3dB after 1000cycles
Operating temperature	-25℃～75℃
Storage temperature	-25℃～75℃

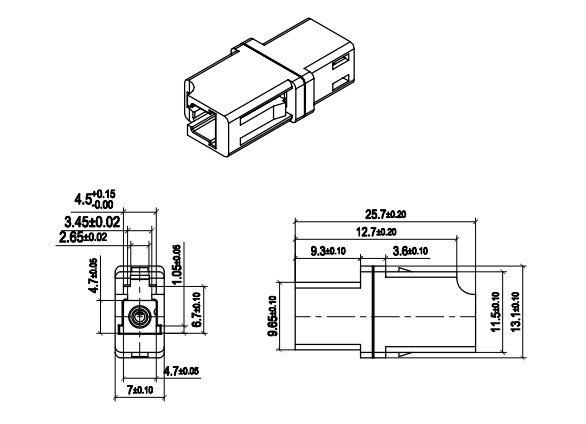

Pictures and Drawing:

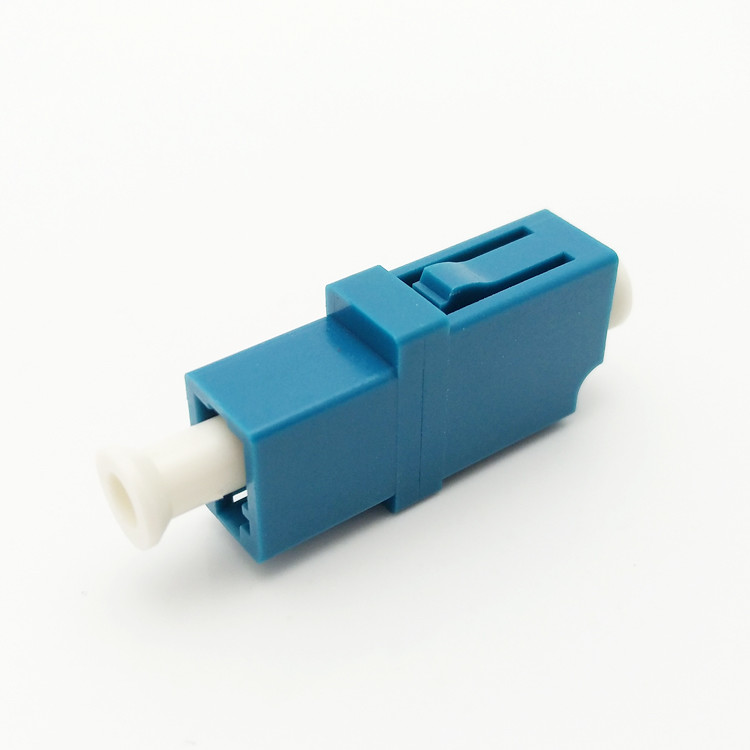

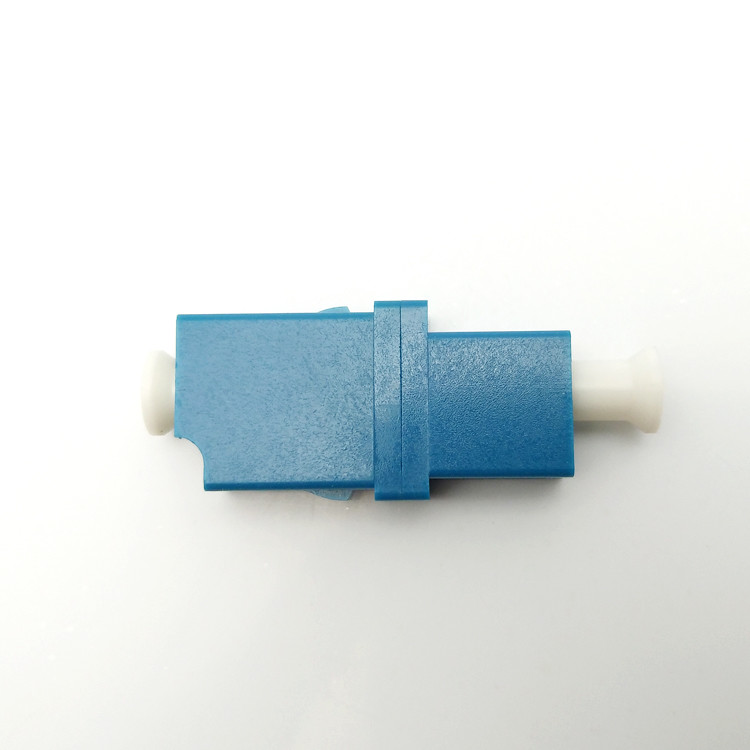

Blue Simplex Plastic Flangeless Lc Fiber Optic Adapter
