PLC Rack Mount Patch Panels

Name: PLC Rack Mount Patch Panels
Brand: CY COM
Price: 1 USD

China PLC Rack Mount Patch Panels wholesale

Brand Name : CY COM

Certification : ISO9001:2015 ;ROSH

Place of Origin : Shenzhen China

MOQ : 20pcs

Payment Terms : Western Union, T/T

Supply Ability : 2K/Month

Delivery Time : 4-8 days

Packaging Details : Carton and Wooden

Splitter type : 1x2 /1x4 / 1x8 Splitter

Apply port : SC/FC/LC/ST

Capacity : 14PCS Spliiter Patch Panel

Height : 3U

Material : Aluminum/Cold-roll steel

Color : Black / Gray / White

Contact Now

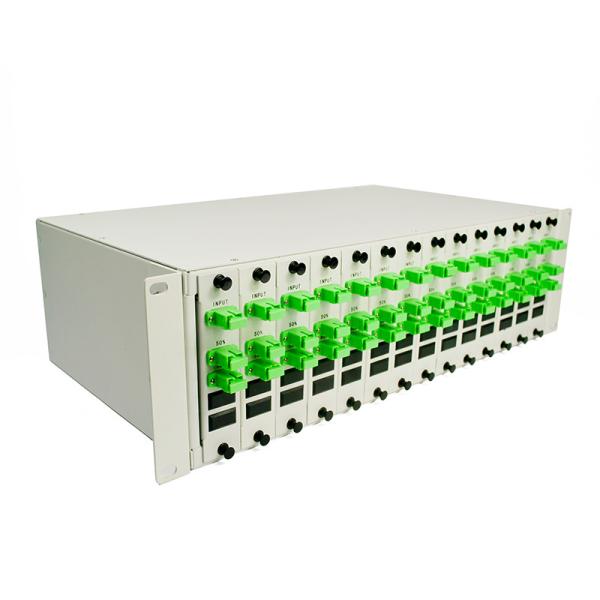

3U 19" Fiber Optical 1x2 1x4 1x8 LGX PLC Splitter Patch Panel /Rack Mount Fiber optic Chassis

Description:

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Application:

FTTx Systems
 Digital, hybrid and AM-Video systems
 LAN,WAN and Metro Networks
 CATV systems
 Other applications in fiber optic systems

Features:

Low Insertion loss and Low PDL
 Uniform power splitting
 High reliability
 Excellent environmental stability
 Compact size and various package


Specification:

Parameter/Type	Nx2(N=1or2)	Nx4(N=1or2)	Nx8(N=1or2)	Nx16(N=1or2)	Nx32(N=1or2)	Nx64(N=1or2)
Fiber	9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)	1260~1650(nm)
Insertion Loss	≤3.9dB	≤7.1dB	≤10.3dB	≤13.3dB	≤16.3dB	≤19.8dB
Loss Uniformity(dB)	≤0.6dB	≤0.6dB	≤0.8dB	≤1.2dB	≤1.5dB	≤2.0dB
Polariation Dependent Loss	≤0.15dB	≤0.15dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB APC≥60dB
Directivity	≥55dB
Working Temperature(℃)	-40°C to +85°C

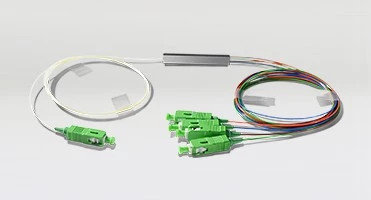

PLC splitter with SC APC connector

PLC Rack Mount Patch Panels

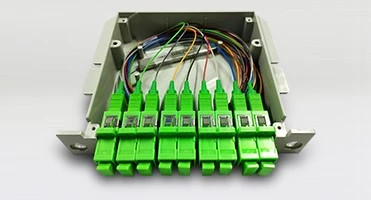

LGX PLC splitter with SC APC connector

PLC Rack Mount Patch Panels
